Description

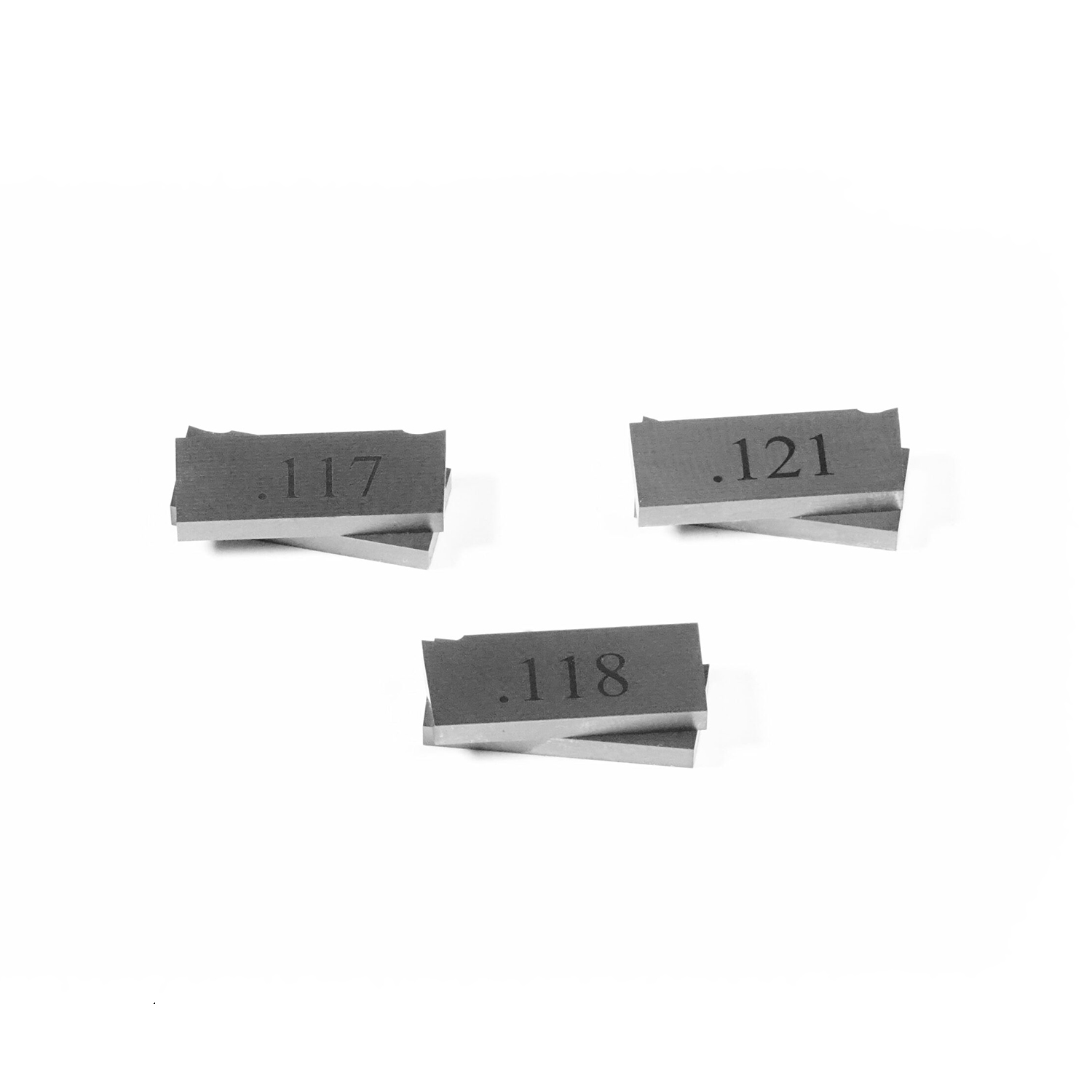

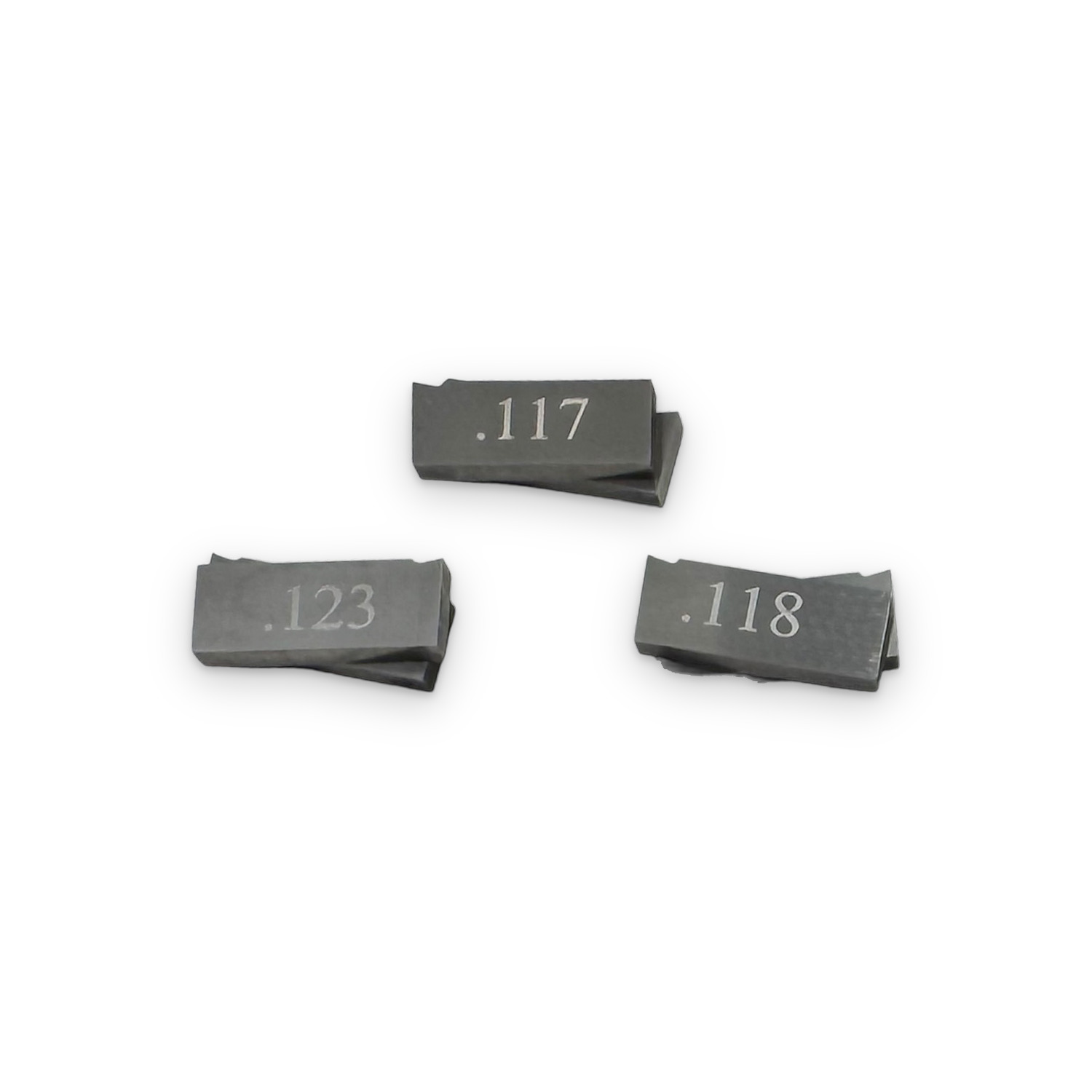

Matrix Precision Replacement Carbide Cutters
Set of two cutters.
Use .118 for a 1911 or 2011.
The .123 thickness is specifically for cutting Sig rails. The cutters can be changed out on our Matrix Precision Rail Cutter.

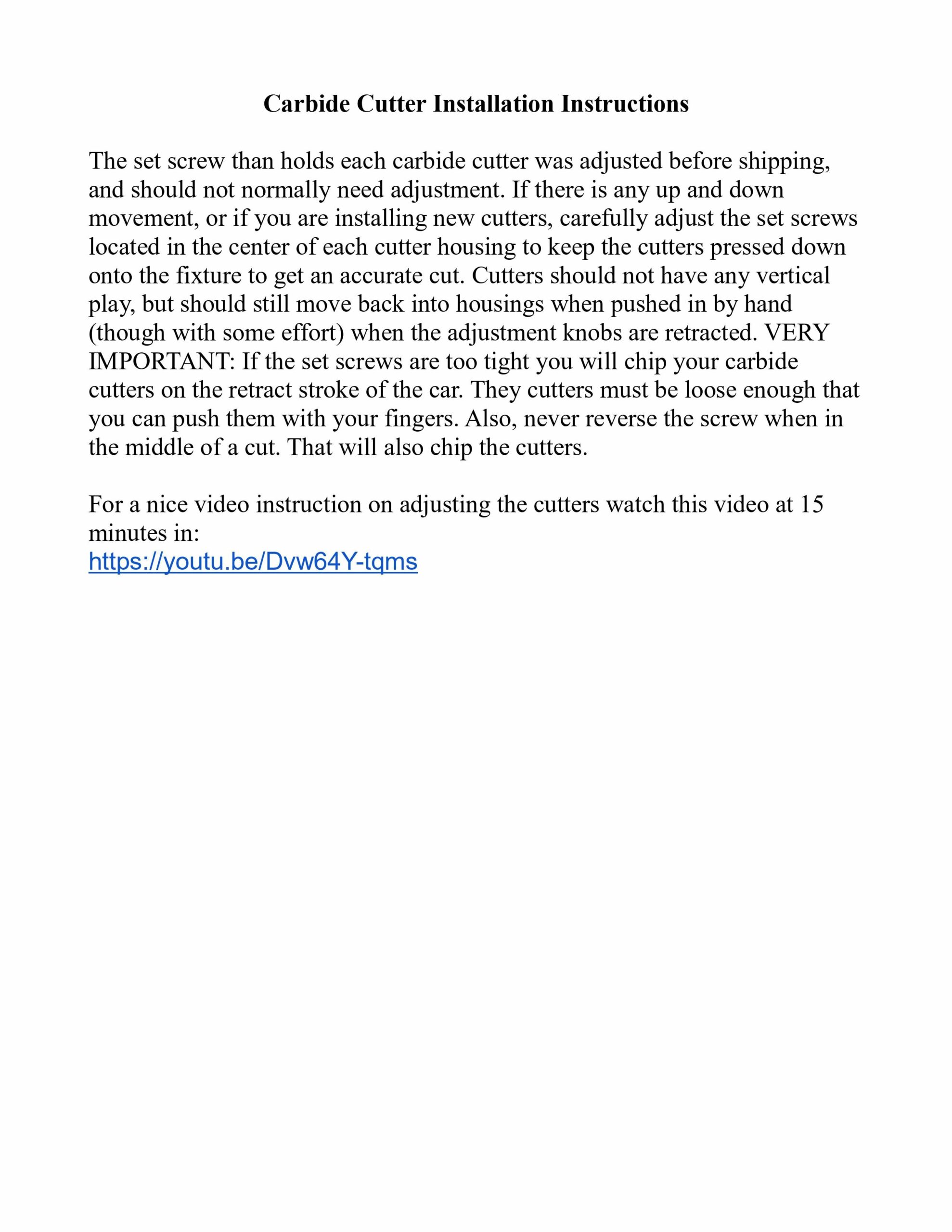

Carbide Cutter Installation Instructions
The set screw that holds each carbide cutter was adjusted before shipping, and should not normally need adjustment. If there is any up and down movement, or if you are installing new cutters, carefully adjust the set screws located in the center of each cutter housing to keep the cutters pressed down onto the fixture to get an accurate cut. Cutters should not have any vertical play, but should still move back into housings when pushed in by hand (though with some effort) when the adjustment knobs are retracted. VERY IMPORTANT: If the set screws are too tight you will chip your carbide cutters on the retract stroke of the car. They cutters must be loose enough that you can push them with your fingers. Also, never reverse the screw when in the middle of a cut. That will also chip the cutters.
Manufacturer: Matrix Precision
